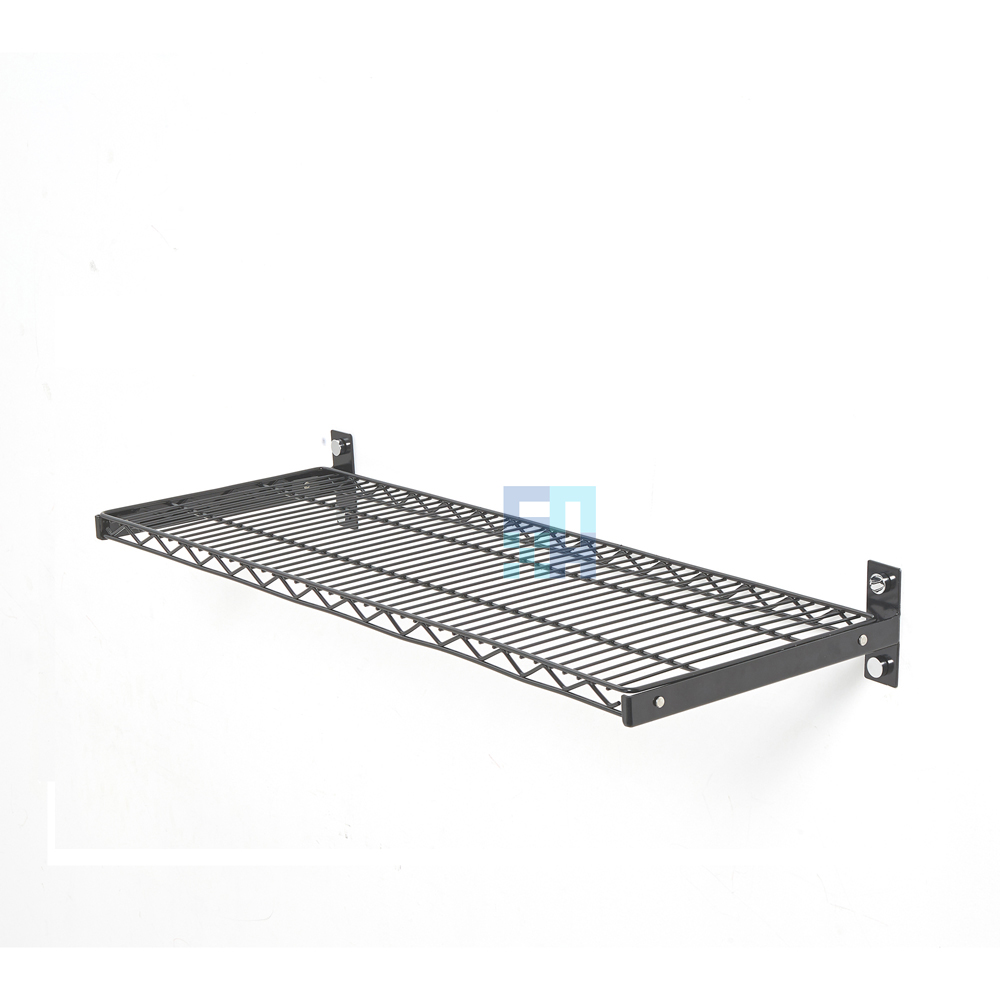

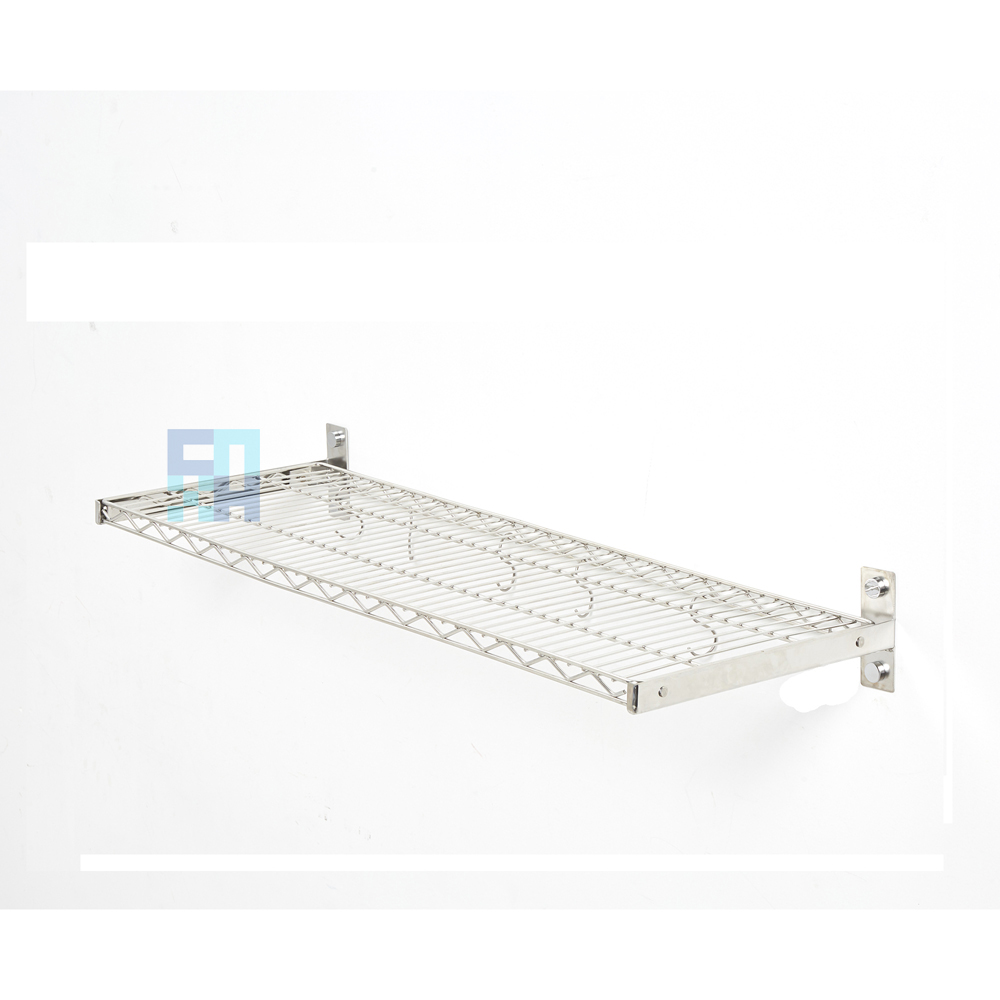

T-Shelf (New Patent)

T-Shelf is our newly developed storage product with the following features:

- Simple in structure and outlook,open storage, conveniently used in different environments.
- Maximum product weight is only 4.5 LBS
- More flexible by using hooks and enlarge storage capacity.

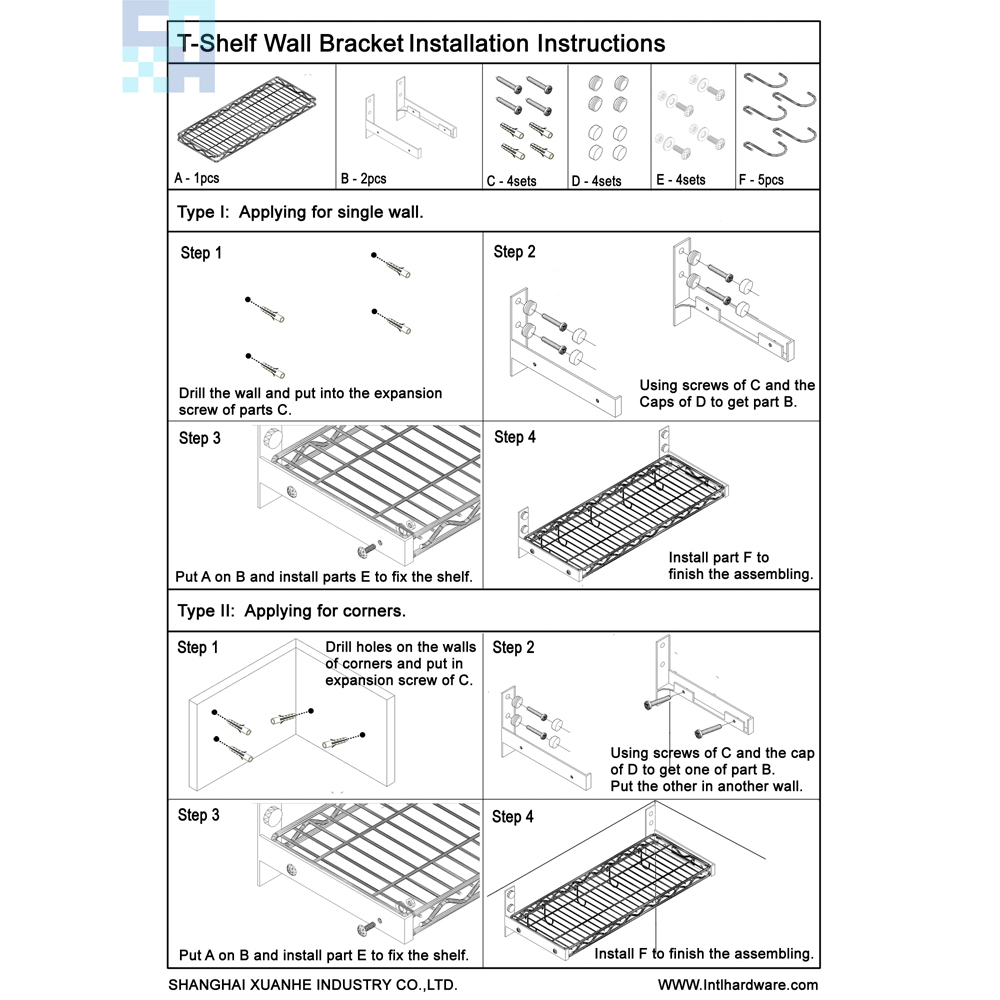

- Easily Installed & Cleaned - Can be washed in water directly when needed
- Can be recycled 100%
- Can be used permanently for its stable texture of the materials
- Can be used on both single wall and corners. Can be assembled on corners seamlessly.

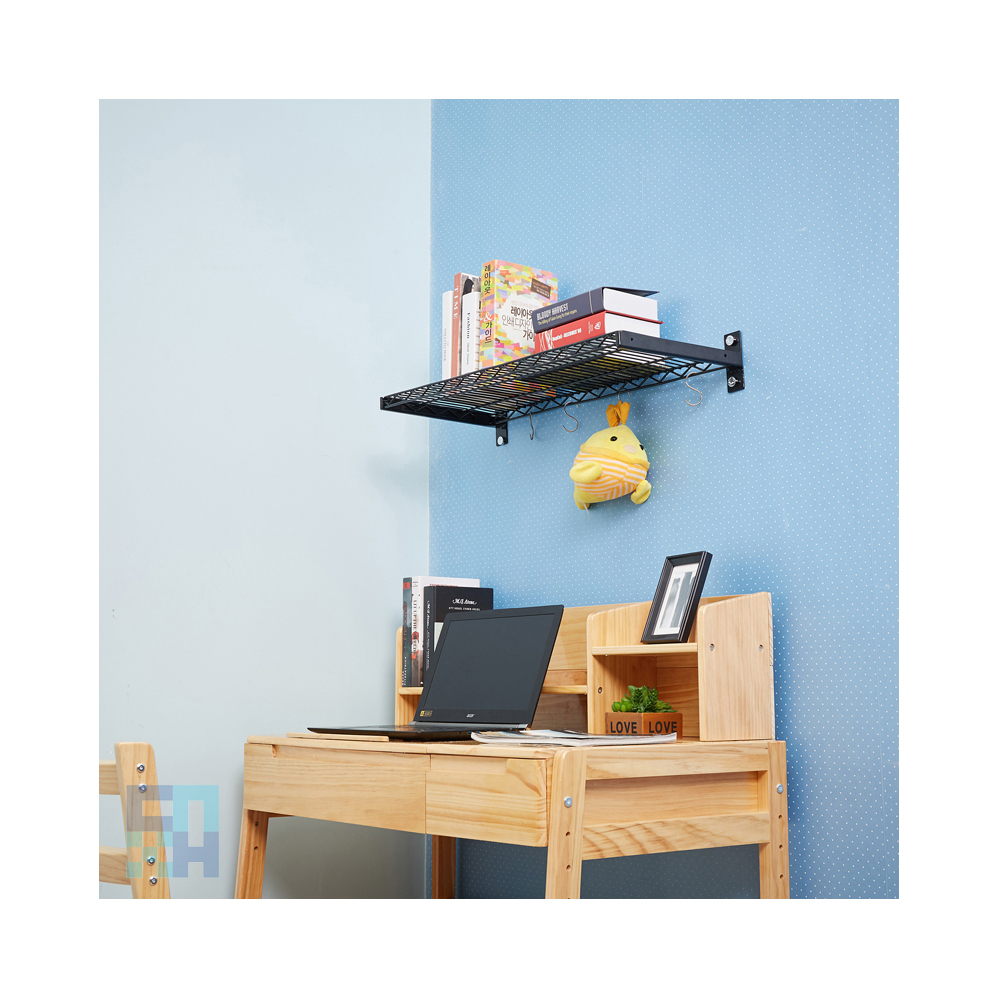

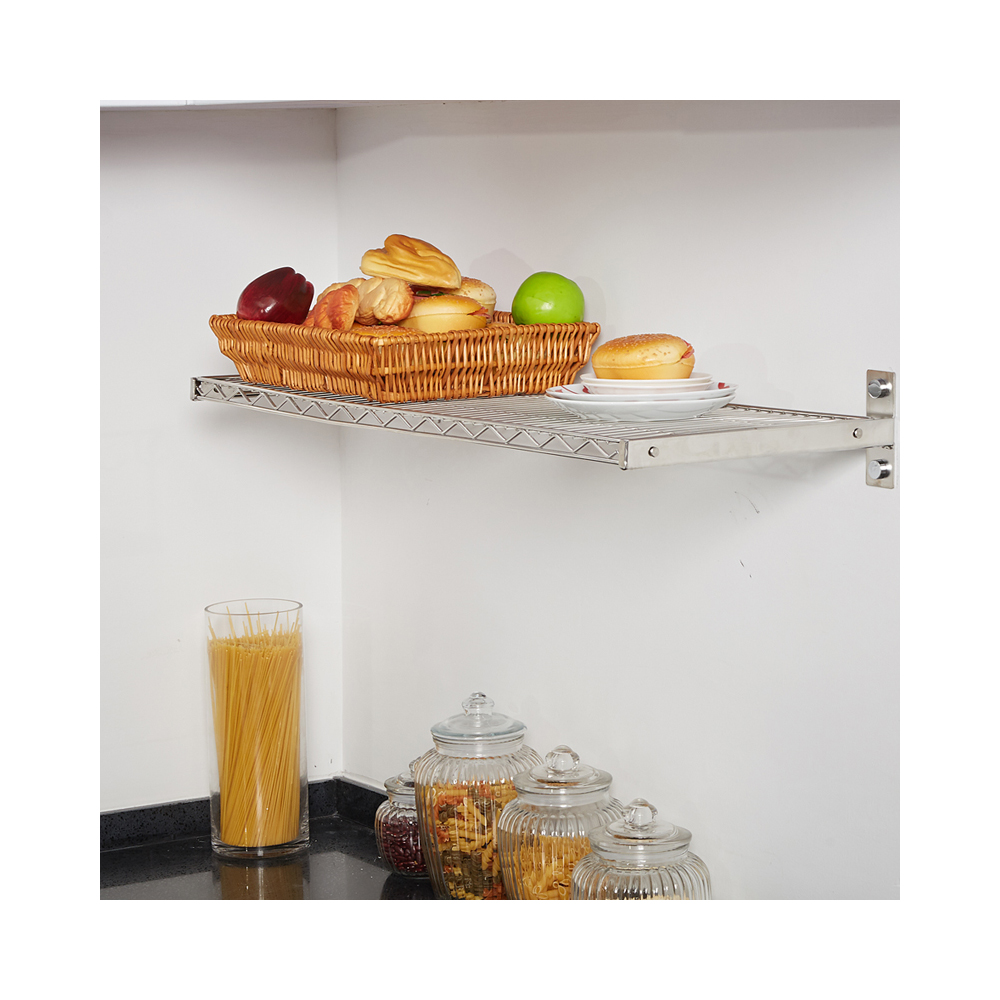

Adaptive in: Kitchens / Bathrooms / Bedrooms / Labs / Offices

T-Shelf has got below patents:
Patent Number 2015208117263 (Utility Model Patent )
Patent Number 2017200647434 (Utility Model Patent )
Patent Number 2017300137865 (Appearance Design Patent)

Patent Number 2015304136928 (Appearance Design Patent)


Model Dimension: D300mm x W900mm

OEM & ODM is acceptable, Logo print is available


Provide products in metric and imperial standard.

Any Dimension Can Customize


Main Material: Carbon steel Q195 or SUS304# Stainless Steel

Finished
- Chrome Plated
- Epoxy
- Galvanized + Epoxy (Suitable for coolroom)
- Galvanized + Antibacterial Epoxy (Suitable for coolroom)
- Galvanized
- Electrolytic Polishing


D x W (Inch)

Loading Capacity

12" x 36"

75 LBS

12" x 30"

75 LBS

10" x 36"

85 LBS

10" x 30"

85 LBS

8" x 36"

95 LBS

8" x 30"

95 LBS

D x W (mm)

Loading Capacity

300 x 900

75 LBS

300 x 750

75 LBS

250 x 900

85 LBS

250 x 750

85 LBS

200 x 900

95 LBS

200 x 750

95 LBS
